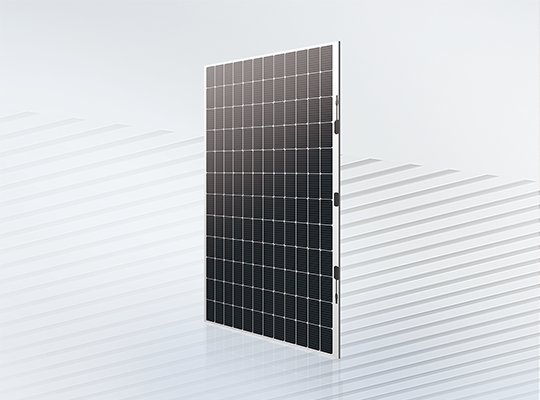

Solar Acoustic Panel for Transportation Infrastructure
Thermal insulation compliant with GB/8424-2020
Anti-glare surface with gloss ≤6 GU at 60° incidence
Zero spontaneous breakage, reducing secondary injury risk
Dimensions customized for seamless integration with acoustic barriers
Technical Support & Advanced Material Technologies
·Polymer Chain Group Modification Technoloy
·Front sheet light transmittance ≥91%
·Water vapor transmission rate:<0.8g/㎡·day
·25-Year power warranty,ensuring long-team high performance
Enhanced Resin-Fiber Interface
·Static load resistance up to 5400 Pa
·IEC 61215 hail test certified
·Fire-rated acoustic core technology
·Complies with GB 8624 B1 fire rating
·Certified to EN 13501 Class B for building materials
Nono Oxide Coating Self-Cleaning Technology
·Inhibits static electricity and dust accumulation,reducing hot spot effects
·Quick rinse cleaning boosts power generation by 3-5%
Relative projects
Elevated bridge fully enclosed photovoltaic sound barrier project
Solution : Transportation Photovoltaic
Location : Hubei, china
